Basic Geometry II

Welcome back to math class. :D
Actually, no.

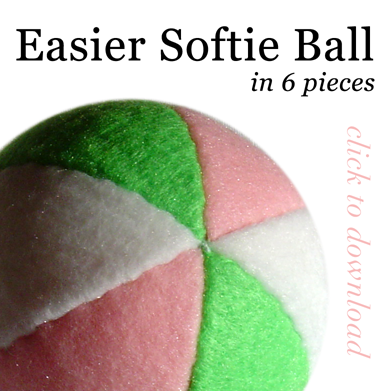

In addendum to the Easy Softie Ball in 12 Pieces, there exists an even easier way to make a ball in six pieces. The 6-piece version, like the 12-piece, only requires the copying and cutting out of one form, but there are only half as many copies to make. Ergo, easier. Yay!



Now, if you're interested in the math behind the form, a 6-piece from peels is actually a little more complex than a 12-piece from pentagons. The 12-piece ball isn't actually a ball in Euclidian geometry: it's a dodecahedron that becomes a ball when you sew it up and stuff it because the pressure of the stuffing inside applies evenly across the planes, seams, and vertices. The 6-piece ball, on the other hand, is an actual, true sphere in design and execution. This is because it employs the relationship between the circumference and diameter of the circle formed by the cross section of the final sphere at maximum diameter.



And you thought this was a post about softies. >w<

By now, you might be asking "hey Ku, what am I supposed to do with all these plush balls?"

Here is your answer:



Inexpensive, unbreakable, toddler-safe Christmas ornaments. Ta-da~!
